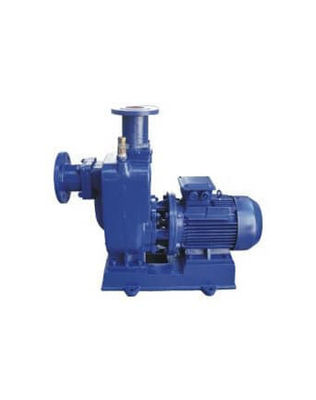

ZW inline drain pump for waste water electric self-priming sewage pump
Electric self-priming sewage pump belongs to self-priming centrifugal oil pump, and the feature is simple construction, easy operation, convenient repairing, high displacement, high efficiency, wide application scope etc.
The pump is composed of suction room, store liquid room, vortex room, liquid returning hole, gas and liquid dividing room etc. The pumps adopt the single-row radial ball bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.
| Item | electric self-priming sewage pump |
| Model | ZWL inline drain pump |
| Material | Cast iron/SS304 |
| Motor | 100%copper wire, full power |
| Color | Black and adjustable |
| Theory | Centrifugal Pump |
| Structure | Single-stage Pump |
| Power | Electric |
| Pressure | Low Pressure |
| Impeller | Vortex impeller |
| Mechanical Seal | Alloy and silicon carbide |
| Capacity | 1.1-720m³/h |
| Head | 8-150m |
| Power | 0.37-160kw |
| Speed | 1450-2900r/min |
| Outlet Diameter | 25-500mm |
| OEM | Acceptable |
Application of inline drain pump
. Hot and cold water distribution and circuits
. Water supply of houses,high buildings and hotels
. Fire fighting pressure boosting
. For all industries where chemically neutral,non-explosive clear liquids without abrasive particles
Advantages about electric self-priming sewage pump
. High hydraulic efficiency
. Low electrical consumption
. Low sound levels
. Almost maintenance free
Motor about electric self-priming sewage pump
