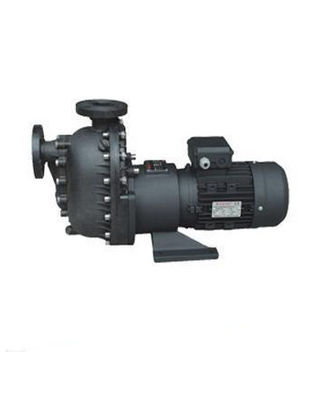

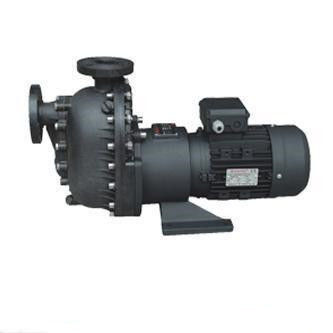

ZBF Plastic Mag Drive Centrifugal Pump 2900rpm Centrifugal Force Water Pump

Brand Name:	ZY
Model Number:	ZBF
MOQ:	2
Price:	200USD-1000USD
Payment Terms:	L/C, T/T, T/T, Western Union
Supply Ability:	10ocs/week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Model Number:

Magnetic Pump

Theory:

Centrifugal Pump

Usage:

Water

Power:

Electric

Fuel:

Diesel

Packaging Details:

plywood

Supply Ability:

10ocs/week

Highlight:

Plastic Mag Drive Centrifugal Pump

ZBF Mag Drive Centrifugal Pump

2900rpm Centrifugal Force Water Pump

Product Description

ZBF Plastic Magnetic Force Pump made in china/plastic hand pump

Product Introduction:

The ZBF type plastic magnetic force transmission centrifugal pump is the union new nanometer material, the structure and the magnetic force transmission technology, and high-tech product which succeeds after this company technical personnel repeatedly research trial, has the performance, the corrosion, not divulges and soon the merit. This pumps by the static seal substitution moves the seal, causes to flow the part to be at completely seals the condition, the thorough settlement other centrifugalism have sealed are unable to avoid running, braving, the drop, to leak, the disease, has flowed the part the material to use the anti-corrosive nanometer polypropylene (PP) is the main material, the use scope broad, the anti-corrosive performance is strong. Should pump the structure compact, contour artistic, volume small, noise low, time short, life long, the movement is reliable. Widely applies to enterprise′ s in the and so on petroleum, chemical industry, drugs manufacture, printing, galvanization, food, environmental protection production process transports does not contain the pellet impurity the corrosive liquid, especially is suitable for flammable, is easy to volatilize, to be virulent and the precious liquid transportation.

Type Designation:

ZBF 40 ¨C 125
The ZB ¨C type magnetic force pumps
F ¨C has flowed the part is a plastic
40 - pumps the import and export diameter (mm)
125 - impellers nominal diameter (mm)

Technology Parameters:

ZBF Self-priming plastic magnetic pump

performance parameter

MODEL	(mm)		flow (m3/h)	head (M)	(NPSH)r(m)	power (KW)	speed (r/min)	voltage (V)	frequency (HZ)
MODEL	inlet	outlet	flow (m3/h)	head (M)	(NPSH)r(m)	power (KW)	speed (r/min)	voltage (V)	frequency (HZ)
ZBF32-105	32	32	6.5	10	5	0.75	2900	380	50
ZBF32-115				16	5	1.1	2900	380	50
ZBF32-125				20	5	1.5	2900	380	50
ZBF40-105	40	40	10	10	5	1.1	2900	380	50
ZBF40-115				16	5	1.5	2900	380	50
ZBF40-125				20	5	2.2	2900	380	50
ZBF50-125	50	50	12.5	20	5	3	2900	380	50
ZBF50-160	50	50	12.5	32	5	4	2900	380	50

Flow:1.5-60m3/h

Head:8-32m

Rotary speed:2900r/min

Power:0.37-15kw

Caliber:20-80mm

Suitable the temperature:0-60°C

Self-priming high:3.5m
