QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel

Name: QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel
Brand: QUZHOU ZHONGYI CHEMICALS CO.,LTD
SKU: QJB-W
Price: 600.00 USD
Availability: InStock

Brand Name:	ZY
Model Number:	QJB-W
MOQ:	2
Price:	200USD-1000USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Application:

Submersible

Color:

Depend On Customers

Material:

Cast Iron

Fuel:

Electric

Usage:

Water

Power:

Electric

Max Temperature:

60℃

Protection Level:

IP68

Power Supply:

220V/50Hz 380v50hz

Head:

1-50 M

Control System:

Variable Frequency Drive

Power Cord Length:

10m

Cable:

7 Core

Rated Frequency:

50Hz

Diameter Of Blade:

600 Mm

Motor:

100% Copper Wire

Color:

Sliver

Flow:

180-3000m3/h

Usage:

Mixing And Pumping

Flow Rate:

1-500 M3/h

Dimension:

Customized

Packaging Details:

plywood

Highlight:

10m Submersible Mixer Reflux Pump

QJB-W Submersible Mixer Reflux Pump

Stainless Steel Submersible Mixer

Product Description

QJB-W 10m High-Efficiency Submersible Sludge Reflux Pump material on cast iron/ stainless steel

Product Description

QJB-W Submersible sludge reflux pump is the special equipments which service for sewage factory to reflux of second degree nixing liquid, it applied need min head. Large capacity in ground Water supply and drain system.

Condition of Usage

1.When continuous running, the medium temperature ≥40℃

2.The value of medium PH is 5-9;

3.The max diving depth is10m.

Structural Characteristics

1.By micro-head and large flow designed, high efficiency;

2.By anti-blocking, anti-winding designed to use and reliable:

3.Using the latest sealing material, it can pump safe continuous operation for more than 10000 hours;

4.Compact construction, installation, maintenance convenient:

5.The host structure by casting, small size, high accuracy, corrosion resistance, no noise;

Model

QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel 0

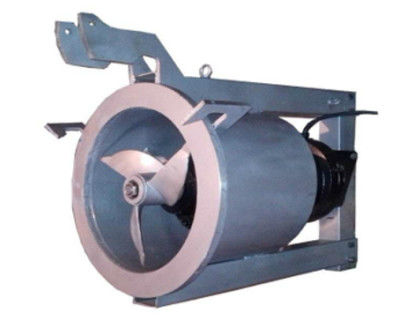

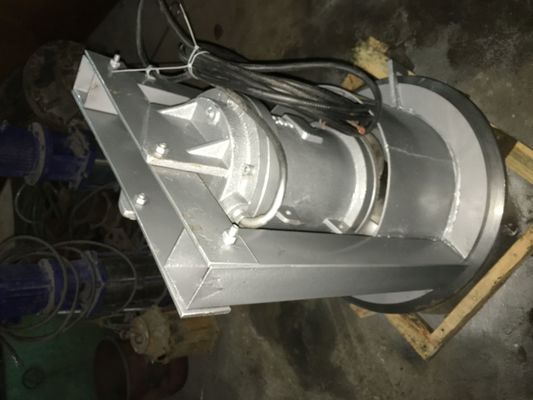

PHOTOS

QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel 1

QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel 2

QJB-W 10m Submersible Mixer Reflux Pump Material On Cast Iron Stainless Steel 3
