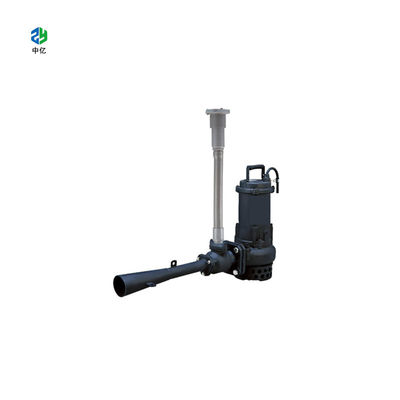

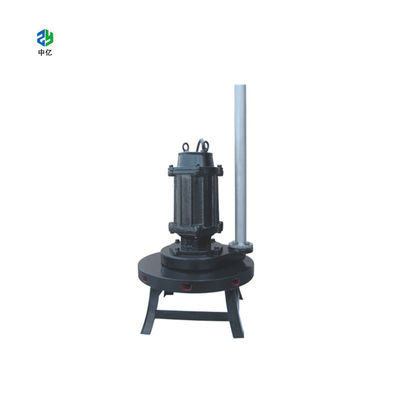

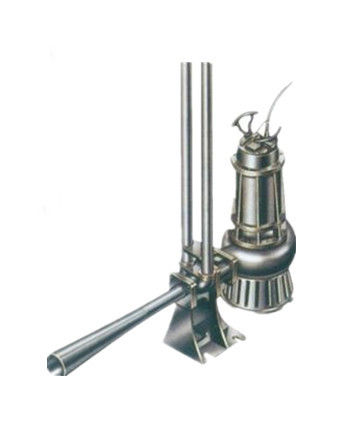

2HP Super Pond Submersible Aerator Aquaculture Submersible Jet Aerator Pump

2HP Super Pond Submersible Aerator Aquaculture Submersible Jet Aerator Pump

Brand Name: ZY
Model Number: QXB
MOQ: 2
Price: 200USD-1000USD
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Theory:
Jet Pump
Usage:
Water
Power:
3-Phase
Application:
Industrial
Material:
Cast Iron
Agitator Type:
Submersible
Frequency:
50Hz
Product Name:
Submersible Agitator
Shaft Length:
1m
Voltage:
380V/ 220V
Warranty:
1 Year
Packaging Details:
plywood
Supply Ability:
100pcs/week
Highlight:

Super Pond Submersible Aerator

,

2HP Submersible Aerator

,

Aquaculture Submersible Jet Aerator Pump

Product Description

2 HP Super pond QXB series centrifugal submersible jet aerator for aquaculture, with high effiency



Features

  • High oxygen transfer rate, BOD easy to remove from wastewater treatment.
  • Mixing and stirring applications for uniform MLSS due to fine bubbles convention.
  • Low noise and low cost for construction and maintenance.



Application

  • The wastewater treatment aeration and agitation for any kinds of factories.





Constructions - Proven Quality

MOTOR
  • Protected to IP68 and class F insulation standards.
  • High efficiency and low temperature rise.
SHAFT SEALS
  • Double mechanical seals in a separated oil chamber.
  • One oil seal in the pressure side to reduce the pressure.
IMPELLER
  • Vortex type, dynamically balanced impeller.
  • Spherical clearance from 35 mm up to 56 mm.
VENTURE TUBE
  • Mixer enhancer helps an effective air-water mix.
  • Minor bubbles for optimum clearing performance.





Model

Oxygen transfer in clean water (kgO2/h)



Single servicing area

    Max area(m2) Max depth(m) Air input(m3/h)
QXB0.75-32 1.0 2.8 2.0 10
QXB1.5-32 1.8 3.5 3.0 22
QXB2.2-50 2.0 4.8 3.5 35
QXB3-50 2.5 5.5 3.5 50
QXB4-50 4.0 6.5 4.0 75
QXB5.5-65 10 8 4.0 90
QXB7.5-80 15 10 4.5 100
QXB11-80 18 11 4.6 160
QXB15-100 20 12 4.8 200
