0.75KW-22KW Submersible Aerator Pump Cast Iron Material

0.75KW-22KW Submersible Aerator Pump Cast Iron Material

Brand Name: ZY
Model Number: QXB
MOQ: 2
Price: 200USD
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Color:
Blue/BLACK/Customized
Model Number:
QXB
Application:
Industrial
Material:
Carbon Steel
Air Input:
10-100M3/h
Frequency:
50/60HZ
Name:
Submersible Agitator
Power:
0.75KW-22KW
Protection Level:
IP68
Size:
Customized
Voltage:
220V/380V/440V
Warranty:
1 Year
Weight:
20-100kg
Packaging Details:
plywood
Supply Ability:
10pcs/week
Highlight:

22KW Submersible Aerator Pump

,

0.75KW Submersible Aerator Pump

,

Cast Iron Submersible Aerator

Product Description
QXB Centrifuge Submersible Aerator Motor Power from 0.75-22kw material cast iron

Product Description


Submersible aerators are used in aeration tanks and aeration depositing tanks of waste water treatment plants . they oxygenate the mixture of waste water and sludge and treat the water by biochemistry or oxygenate the breeding pools .

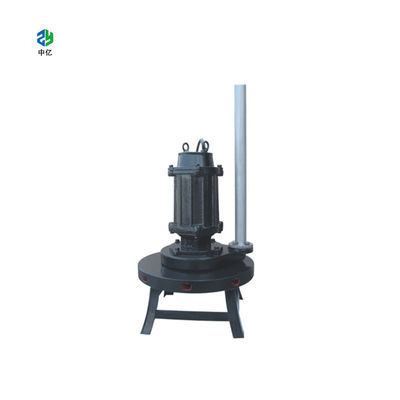

0.75KW-22KW Submersible Aerator Pump Cast Iron Material 0

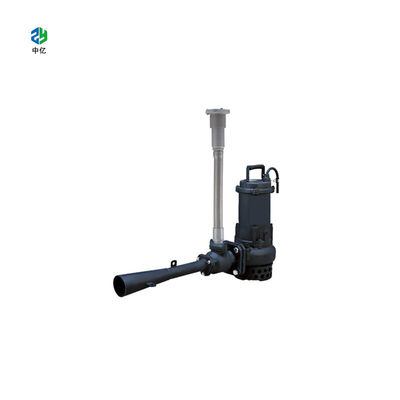

0.75KW-22KW Submersible Aerator Pump Cast Iron Material 1



QXB - QXB - Centrifuge submersible aerator - Motor power(KM)QSB - QSB - jet submersible aerator - Motor power(KW)


Characteristic

1 . Compact structure , small area occupied , easy to install ;

2 . Except for the air inlet , all the parts are in water and noise level is very low ,

3 . More air intake , more and small bubble produced and high oxygen dissolution ;

4 . Not necessary to provide air source , no air blower and engineering cost is fairly low .

5 . ABS submersible technology imported from Germany is adopted . The flow channel of the impeller is adopted of blockless and the operation is safer and more reliable .

Structure&Principle

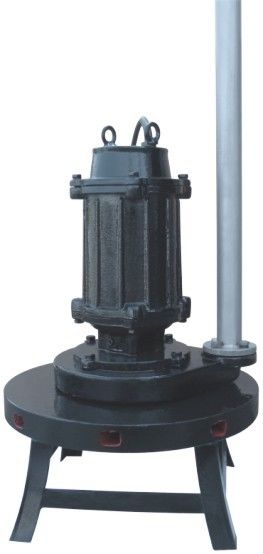

0.75KW-22KW Submersible Aerator Pump Cast Iron Material 2



The submersible aerator is composed of submersible pump , mixing compartment , pedestal , air inlet tube , muffler , etc for the air inlet tube , the upper side is the air inlet above the water surface and the lower side is connected to the mixing compartment . when the electric power is switched on , the impeller shall rotate and the water shall flow out of the impeller outlet . it shall result in minus pressure in the mixing compartment and air shall enter to mix the liquid . the mixture shall flow out from periphery to fulfill the process to oxygenate the liquid

Performanceparametes




Model

Oxygen transfer in clean water (kgO2/h)



Single servicing area

    Max area(m2) Max depth(m) Air input(m3/h)
QXB0.75-32 1.0 2.8 2.0 10
QXB1.5-32 1.8 3.5 3.0 22
QXB2.2-50 2.0 4.8 3.5 35
QXB3-50 2.5 5.5 3.5 50
QXB4-50 4.0 6.5 4.0 75
QXB5.5-65 10 8 4.0 90
QXB7.5-80 15 10 4.5 100
QXB11-80 18 11 4.6 160
QXB15-100 20 12 4.8 200
