QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water

QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water

Brand Name: ZY
Model Number: QDX
MOQ: 5
Price: 30-500usd
Payment Terms: T/T, Western Union
Supply Ability: 100pcs one month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Color:
Red/ Sliver
Use:
Clean Water
Voltage:
220v/380v
Name:
QDX Water Submersible Pump
Pressure:
Low Pressure
Theory:
Centrifugal
Structure:
Single-stage
Fuel:
Electric
Application:
Water Supply, Irrigation, Drainage, Etc.
Design:
Open Or Closed Impeller
Flow Rate:
Variable
Frequency:
50Hz/60Hz
Head:
Variable
Material:
Stainless Steel, Cast Iron, Etc.
Power:
Variable
Pressure:
Up To 10 Bar
Pump Type:
Single Stage Single Suction Centrifugal Pump
Shaft Seal:
Mechanical Seal Or Packing Seal
Speed:
Variable
Temperature:
Up To 80℃
Voltage:
220V/380V/440V/660V
Warranty:
1 Year
Packaging Details:
carton or plywood
Supply Ability:
100pcs one month
Product Description

Detail



Applications: This submersible water pump are uses for Well pumping,river pumping,farming irrigation,water supply and drainage in breeding industry and domestic use,etc
Pump Materials:

1)Pump body:Cast aluminum

2)Mechanical Seal:Ceramic-Graphite,Silicon

3)Motor bracket: Cast Aluminum Or Cast Iron

4)Motor shaft:CS45# Or Ss420

5)Impeller: Cast Aluminum

6)Protection class: IPX8

7)Insulation class: E

Working Conditions:

Max.medium temperature: +40°C

Max.ambient temperature: +40°C

Max.working pressure: 5bar

Power voltage:single phase AC 220V/50HZ,three phase AC 380V/50HZ





Technical Data





MODEL FLOW(m3/h) HEAD(m) POWER(kW) OUTLET(INCH) VOLTAGE(V)
QDX1.5-17-0.37 1.5 16 0.37 1 220
QDX3-20-0.55 3 20 0.55 1 220
QDX10-12-0.55 10 10 0.55 1.5 220
QDX15-7-0.55 15 7 0.55 2 220
QDX1.5-32-0.75 1.5 32 0.75 1 220
QDX7-18-0.75 7 18 0.75 1.5 220
QDX10-16-0.75 10 15 0.75 2 220
QDX15-10-0.75 15 10 0.75 2.5 220
QDX30-6-0.75 30 6 0.75 3 220
QDX10-18-1.1 15 15 1.1 2 220
QDX15-15-1.1 15 15 1.1 2.5 220
QDX40-7-1.1 40 7 1.1 3 220
QDX15-18-1.5 15 18 1.5 2 220
QDX40-9-1.5 40 9 1.5 3 220
QDX50-7-1.5 50 7 1.5 4 220



Photos

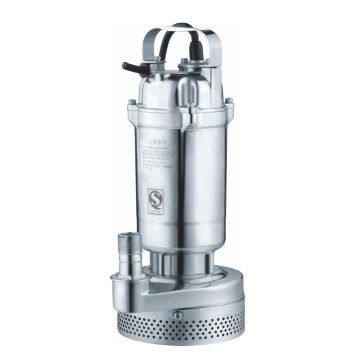

QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water 0



QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water 1



QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water 2



Package



QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water 3
