Single Stage Single Suction Centrifugal Pump
Created with Pixso.

1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump

1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump

Brand Name: RTK
Model Number: QDX
MOQ: 5
Price: 300
Payment Terms: T/T, Western Union
Supply Ability: 100pcs one month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Material:
SS304
Color:
Red/ Sliver
Use:
Clean Water
Voltage:
220v/380v
Name:
QDX Water Submersible Pump
Pressure:
Low Pressure
Theory:
Centrifugal
Structure:
Single-stage
Fuel:
Electric
Packaging Details:
carton or plywood
Supply Ability:
100pcs one month
Highlight:

1.5HP SS Submersible Pump

,

1.5HP Single Stage Single Suction Centrifugal Pump

,

SS Single Stage Single Suction Centrifugal Pump

Product Description

QDX 1.5HP Stainless Steel Submersible Water Pump use on clean water



Detail



Applications: This submersible water pump are uses for Well pumping,river pumping,farming irrigation,water supply and drainage in breeding industry and domestic use,etc
Pump Materials:

1)Pump body:Cast aluminum

2)Mechanical Seal:Ceramic-Graphite,Silicon

3)Motor bracket: Cast Aluminum Or Cast Iron

4)Motor shaft:CS45# Or Ss420

5)Impeller: Cast Aluminum

6)Protection class: IPX8

7)Insulation class: E

Working Conditions:

Max.medium temperature: +40°C

Max.ambient temperature: +40°C

Max.working pressure: 5bar

Power voltage:single phase AC 220V/50HZ,three phase AC 380V/50HZ





Technical Data





MODEL FLOW(m3/h) HEAD(m) POWER(kW) OUTLET(INCH) VOLTAGE(V)
QDX1.5-17-0.37 1.5 16 0.37 1 220
QDX3-20-0.55 3 20 0.55 1 220
QDX10-12-0.55 10 10 0.55 1.5 220
QDX15-7-0.55 15 7 0.55 2 220
QDX1.5-32-0.75 1.5 32 0.75 1 220
QDX7-18-0.75 7 18 0.75 1.5 220
QDX10-16-0.75 10 15 0.75 2 220
QDX15-10-0.75 15 10 0.75 2.5 220
QDX30-6-0.75 30 6 0.75 3 220
QDX10-18-1.1 15 15 1.1 2 220
QDX15-15-1.1 15 15 1.1 2.5 220
QDX40-7-1.1 40 7 1.1 3 220
QDX15-18-1.5 15 18 1.5 2 220
QDX40-9-1.5 40 9 1.5 3 220
QDX50-7-1.5 50 7 1.5 4 220

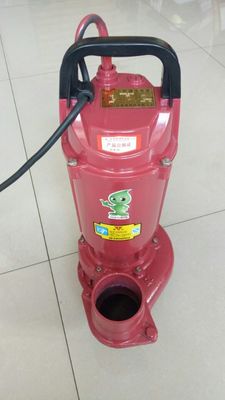

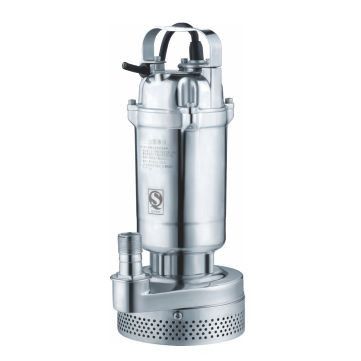

Photos

1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump 0



1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump 1



1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump 2



Package



1.5HP SS Submersible Pump Single Stage Single Suction Centrifugal Pump 3
