ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump

1 Piece/Pieces
MOQ
US $200 - 1,000 / Piece
Price
ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Zhejiang, China (Mainland)
Brand Name: OEM
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Power: Electric
Standard Or Nonstandard: Nonstandard
Pressure: Low Pressure
Color: Blue,Red
Motor: 100% Copper Wire
Frequency: 50 /60 Hz
High Light:

60Hz Single Stage Horizontal Centrifugal Pump

,

50Hz Single Stage Horizontal Centrifugal Pump

,

Explosion Proof Centrifugal Pump

Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: ISWB
Payment & Shipping Terms
Packaging Details: Standard export packing or according to customers' requirement for centrifugal water pump for irrigation.
Delivery Time: After 15days
Payment Terms: T/T, Western Union
Supply Ability: 100 Piece/Pieces per Month
Product Description

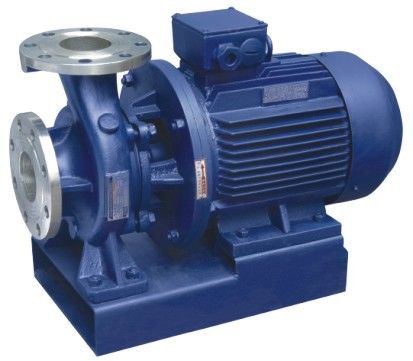

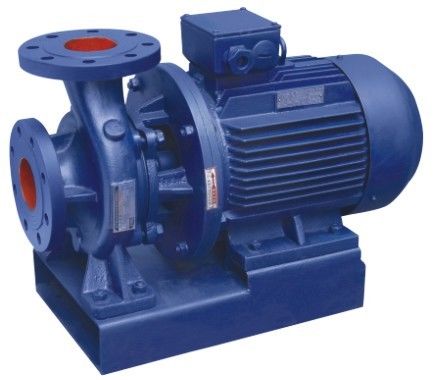

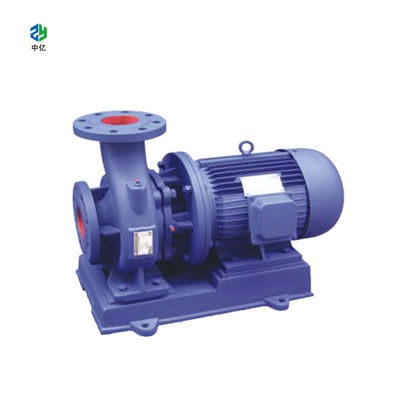

ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump



Product Introduction

ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump using the most advanced hydraulic model, according to IS single-stage single-suction centrifugal pump performance parameters and vertical pump unique combination of structural design, and in strict accordance with the international iso2858 design and manufacture, Selection of carbide mechanical seal device, with high efficiency and energy saving, reliable performance, easy installation and so on



Range of application

1.For the delivery of water and physical and chemical properties similar to other liquids used in water, for industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire booster, long-distance transport, warm and cold refrigeration cycle, bathroom and other cold water cycle Pressurization and equipment support, the use of temperature t ≤ 80 ℃.

2.Widely used: metallurgical, chemical, textile, paper and hotel hotels such as boiler hot water pressurized circulation and urban heating system, iswr type use temperature t ≤ 120 ℃.

3.It is suitable for oil, chemical, metallurgy, electric power, papermaking, food and pharmaceutical and synthetic fiber, and the temperature is -20 ℃ ~ + 120 ℃ for the transportation of non-solid particles, corrosive and viscosity similar to water.

4.For the delivery of gasoline, kerosene, diesel and other oil products or flammable, explosive liquid, the medium temperature is -20 ~ +120 ℃.



product feature

————————————————————————————————————

1. Smooth operation: the absolute concentricity of the pump shaft and the impeller of the dynamic and static balance, to ensure smooth operation, no vibration.

2. Drip leak: different materials, carbide seal, to ensure that no leakage of different media delivery.

3. Low noise: two low-noise bearings under the support of the pump, running smoothly, in addition to the motor weak sound, basically no noise.

4. Easy installation and maintenance, no need to dismantle the pipe system, as long as the removal of the pump seat nut can extract all the rotor parts.

5. Low failure rate: simple and reasonable structure, the key part of the use of world-class quality support, machine trouble-free working hours greatly improved.

6. Easy maintenance: replacement of seals, bearings, simple and convenient.

7. Place more provinces: exports can be left, right, up three directions, then the pipeline layout installation, save space.









ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump 0ISWH Horizontal single-stage single-suction single-suction explosion-proof oil pump 1

Model Flow Head
m
efficiency
%
Speed
r/min
Power
kw
NPSH
m
KG
m3/h l/s
ISWB15-80 1.1
1.5
2.0
0.3
0.42
0.55
8.5
8
7
26
34
34
2900 0.18 2.3 17
ISWB20-110 1.8
2.5
3.3
0.50
0.69
0.91
16
15
13.5
25
34
35
2900 0.37 2.3 25
ISWB20-160 1.8
2.5
3.3
0.50
0.69
0.91
33
32
30
19
25
23
2900 0.75 2.3 29
ISWB25-110 2.8
4.0
5.2
0.78
1.11
1.44
16
15
13.5
34
42
41
2900 0.55 2.3 26
ISWB25-125 2.8
4.0
5.2
0.78
1.11
1.44
20.6
20
18
28
36
35
2900 0.75 2.3 28
ISWB25-125A 2.5
3.6
4.6
0.69
1.0
1.28
17
16
14.4
35
35
35
2900 0.55 2.3 27
ISWB25-160 2.8
4.0
5.2
0.78
1.11
1.44
33
32
30
24
32
33
2900 1.5 2.3 39
ISWB25-160A 2.6
3.7
4.9
0.12
1.03
1.36
29
28
26
31
31
31
2900 1.1 2.3 34
ISWB32-100I 4.4
6.3
8.3
1.22
1.75
2.32
13.2
12.5
11.3
48
54
53
2900 0.75 2.0 32
ISWB32-125 3.5
5.0
6.5
0.97
1.39
1.8
22
20
18
40
44
42
2900 0.75 2.3 28
ISWB32-125A 3.1
4.5
5.8
0.86
1.25
1.61
17.6
16
14.4
43
43
43
2900 0.55 2.3 28
ISWB32-160 3.1
4.5
5.8
0.86
1.25
1.61
33
32
30
34
40
42
2900 1.5 2.3 28
ISWB32-160I 4.4
6.3
8.3
1.22
1.75
2.32
33.2
32
30.2
34
40
42
2900 2.2 2.0 47
ISWB32-200 3.1
4.5
5.8
0.86
1.25
1.61
51
50
48
28
35
37
2900 3 2.0 47
ISWB32-200I 4.4
6.3
8.3
1.22
1.75
2.32
50.5
50
48
26
33
35
2900 4 2.0 43
ISWB32-200IA 2.8
4.0
5.2
0.78
1.11
1.44
44.6
44
42.7
34
40
42
2900 2.2 2.0 74
ISWB40-100 4.4
6.3
8.3
1.22
1.75
2.31
13.2
12.5
11.3
48
54
53
2900 0.55 2.3 32
ISWB40-100A 3.9
5.6
7.4
1.08
1.56
2.06
10.6
10
9
52
52
52
2900 0.37 2.3 32
ISWB40-125 4.4
6.3
8.3
1.22
1.75
2.31
21
20
18
41
46
43
2900 1.1 2.3 34
