OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump

1 Piece/Pieces
MOQ
US $200 - 1,000 / Piece
Price
OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Zhejiang, China (Mainland)
Brand Name: OEM
Model Number: Pump
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Power: Electric
Standard Or Nonstandard: Nonstandard
Fuel: Diesel
Pressure: Low Pressure
Application: Submersible
Color: Blue,Red
Material: Stainless Steel
Motor: 100% Copper Wire
Frequency: 50 /60 Hz
High Light:

OEM Water Pipeline Booster Pump

,

Pipeline Booster Pump Low Pressure

,

OEM Single Stage Centrifugal Pump

Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: ISW
Payment & Shipping Terms
Packaging Details: Standard export packing or according to customers' requirement for centrifugal water pump for irrigation.
Delivery Time: After 15days
Payment Terms: T/T, Western Union
Supply Ability: 100 Piece/Pieces per Month
Product Description

OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump

Product name

ISW horizontal single stage centrifugal pump inline end suction

Introduction

ISW single-stage single-suction centrifugal pump is our technical staff of the United Nations domestic pump experts choose the domestic excellent hydraulic model, the use of IS-type centrifugal pump performance parameters, in the general vertical pump on the basis of clever combination of design, According to the use of temperature, medium and other different in the lSG type derived from the application of hot water, high temperature, corrosive chemical pump, oil pump. The series of products with high efficiency, low noise, reliable performance and so on.





Features

The pump is a vertical structure, import and export caliber the same, and located in the same center line, can be installed like a valve in the pipeline, the appearance of compact and beautiful, small footprint, low construction, such as with a protective cover can be Placed outdoors.

The impeller is directly mounted on the extended shaft of the motor, the axial dimension is short, the structure is compact, the pump and the motor bearing are arranged reasonably, can effectively balance the radial and axial load caused by the pump operation, thus ensuring the pump running smoothly and the vibration is small , Low noise

Shaft seal with mechanical seal or mechanical seal combination, the use of imported titanium seal ring, medium-sized high-temperature mechanical seal and the use of carbide material, wear-resistant seal, can effectively extend the mechanical seal life.

Easy installation and maintenance, no need to dismantle the pipe system, as long as the removal of the pump seat nut can extract all the rotor parts.

According to the requirements of the use of flow and head of the need to use the pump string, parallel operation.

The vertical and horizontal installation of the pump can be made according to the piping arrangement.



Model Show

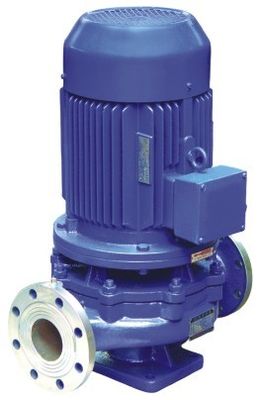

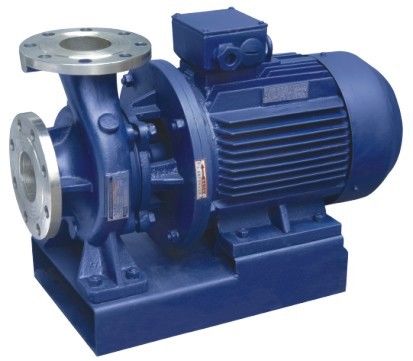

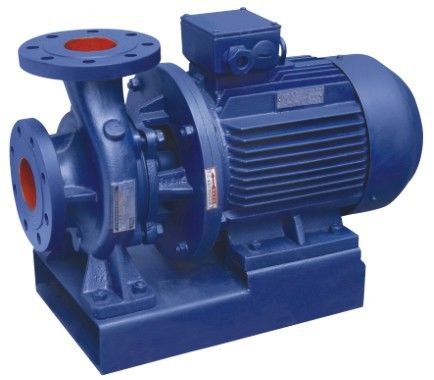

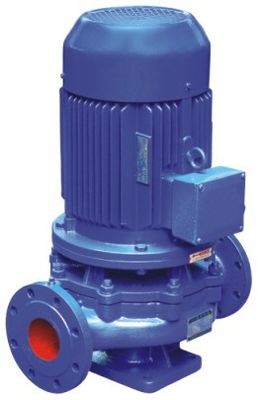

OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump 0OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump 1OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump 2OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump 3

Specification:



NO . MODEL
POWER
(KW)
FLOW
(m3/h)
HEAD
(m)
1 25-125 0.75 4 20
2 25-125A 0.75 3.6 16
3 25-160 1.5 4 32
4 25-160A 1.1 3.7 28
5 32-125 0.75 4.5 20
6 32-125A 0.75 4 16
7 32-160 1.5 4.5 32
8 32-160A 1.1 4 25
9 32-200 3 4.5 50
10 32-200A 3 4 44
11 40-100 0.75 6.3 12.5
12 40-125 1.1 6.3 20
13 40-125A 0.75 5.6 16
14 40-160 2.2 6.3 32
15 40-160A 1.5 5.9 28
16 40-160B 1.1 5.5 24
17 40-200 4 6.3 50
18 40-200A 3 5.9 44
19 40-200B 2.2 5.5 38
20 40-250 7.5 6.3 80
21 40-250A 5.5 5.9 70
22 40-250B 74 5.5 60
23 40-100(I) 1.1 12.5 12.5
24 40-100(I)A 0.75 11 10
25 40-125(I) 1.5 12.5 20
26 40-125(I)A 1.1 11 16
27 40-160(I) 3 12.5 32
28 40-160(I)A 2.2 11.7 28
29 40-160(I)B 1.5 10.5 22
30 40-200(I) 5.5 12.5 50
31 40-200(I)A 4 11.7 44
32 40-200(I)B 3 10.5 36
33 40-250(I) 11 12.5 80
34 40-250(I)A 7.5 11.7 70
35 40-250(I)B 7.5 10.8 60
36 50-100 1.1 12.5 12.5
37 50-100A 0.75 11 10
38 50-125 1.5 12.5 20

OEM Water Pipeline Booster Pump Low Pressure Single Stage Centrifugal Pump 4
