Emergency Fire Water Pump System
Created with Pixso.

Fire Fighting Booster Pump Emergency Fire Water Pump System 3-20Bar

Fire Fighting Booster Pump Emergency Fire Water Pump System 3-20Bar

Brand Name: ZY
Model Number: Fire Pump Set
MOQ: 1 set
Price: $1000-$3000
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Detail Information
Place of Origin:
Zhejiang, China
Certification:
ISO9001
Brand Name:
OEM
Model Number:
Fire Pump Set
Structure:
Diesel Pump+Jockey Pump+Electric Pump
Usage:
Water
Application:
Diesel Pump+Jockey Pump+Electric Pump
Power:
Electric
Fuel:
Diesel
Pressure:
High Pressure
Frequency:
50/60 Hz
Flow:
30-3000GPM
Head:
3-20Bar
Caliber:
25-800mm
Speed:
740-2900r/min
Material:
HT200, SS304, Bronze
Jockey Pump:
0.55-160kw
Packaging Details:
wooden box
Supply Ability:
50set/month
Highlight:

Fire Fighting Booster Pump Emergency

,

Booster Emergency Fire Water Pump System

,

20Bar Fire Fighting Booster Pump

Product Description

The quality of the best fire fighting booster pump EDJ diesel engine fire fighting pump set for fire protection

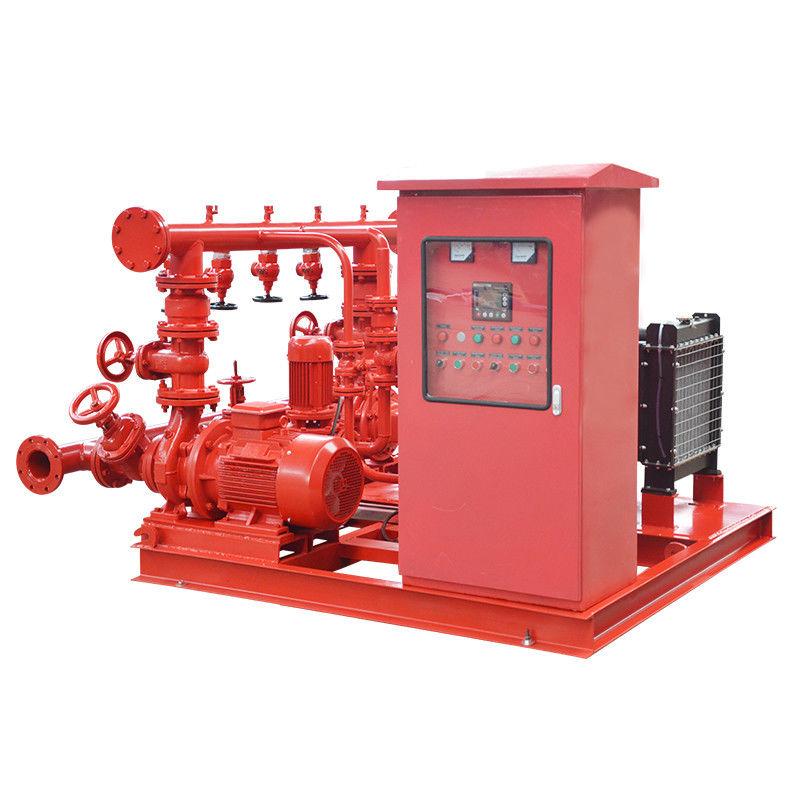

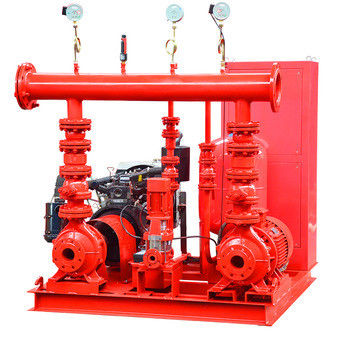

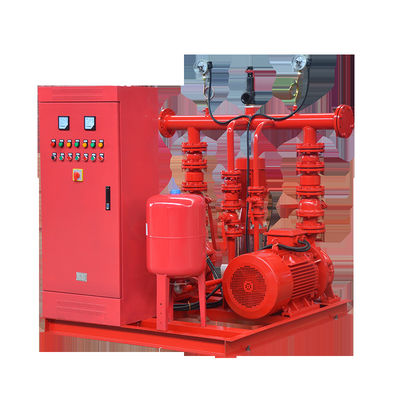

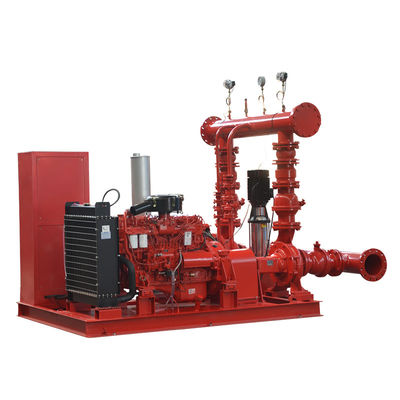

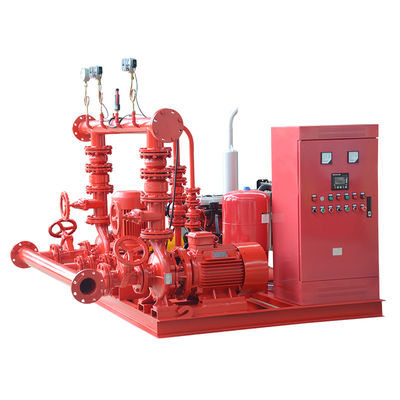

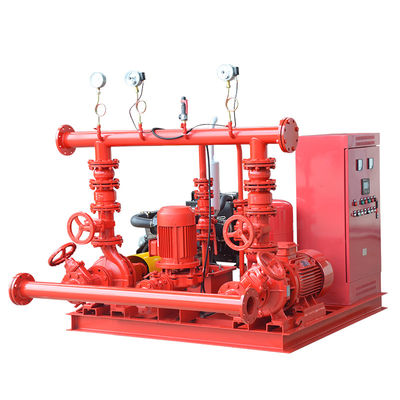

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems. Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association

100GPM @4BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD4/5-50L(50-200) 100 4 5.5 cast iron
Diesel engine XBC4/5-IS 100 4 5.5 cast iron
Jockey CDL2-70 10 5 0.75 SS304
100GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/5-65L(65-250B) 100 6 7.5 cast iron
Diesel engine XBC6/5-IS 100 6 7.5 cast iron
Jockey CDL2-100 10 7 1.1 SS304
200GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/10-65L(65-250) 200 6 15 cast iron
Diesel engine XBC4/5-IS 200 6 22 cast iron
Jockey CDL4-90 20 7 2.2 SS304
500GPM @5BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD5/30-100L(100-200) 500 5 22 cast iron
Diesel engine XBC5/30-IS 500 5 30 cast iron
Jockey CDL12-60 50 6 4 SS304
500GPM @8BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD8/30-100L(100-250) 500 8 37 cast iron
Diesel engine XBC8/30-D 500 8 45 cast iron
Jockey CDL12-90 50 9 5.5 SS304
500GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/30-100L(100-315A) 500 10 55 cast iron
Diesel engine XBC10/30-D 500 10 55 cast iron
Jockey CDL12-110 50 11 7.5 SS304
750GPM @9BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD9/50-125L(125-250) 750 9 55 cast iron
Diesel engine XBC9/50-D 750 9 90 cast iron
Jockey CDL16-90 70 10 11 SS304
750GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/50-150L(150-315A) 750 10 90 cast iron
Diesel engine XBC10/50-D 750 10 90 cast iron
Jockey CDL16-100 70 11 11 SS304
more specification please contact us
