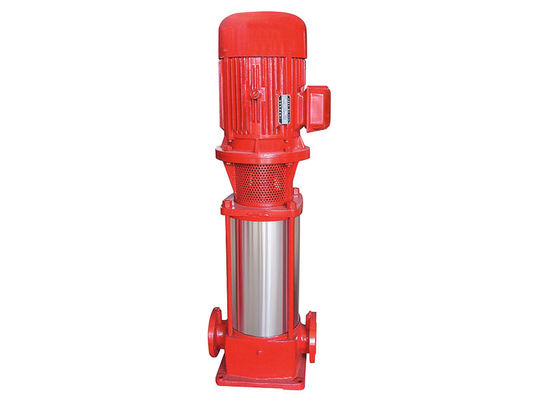

CDL series High pressure water pump Fire Jockey Pump

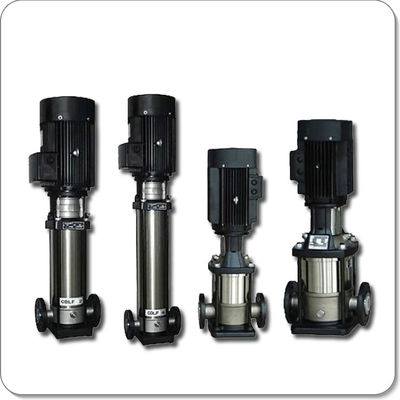

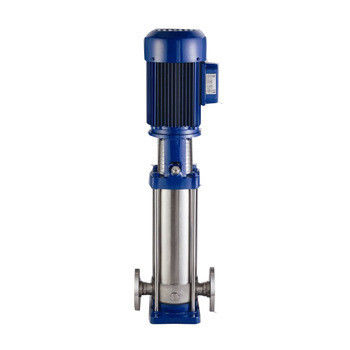

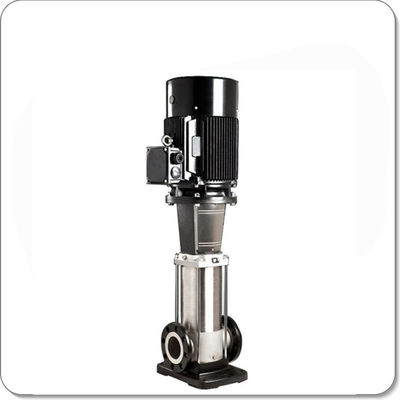

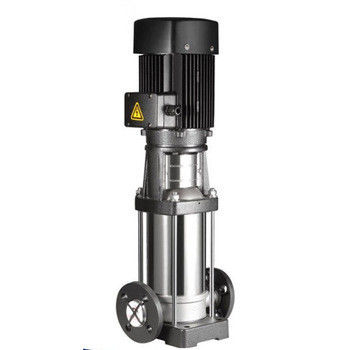

| Features | CDL, CDLF type of stainless steel sheet metal stamping, forming vertical multistage centrifugal pump (hereinafter referred to as the pump), with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, The use of easy maintenance, and reliable sealing performance. |
| Use | Product use chemical properties similar to the water of low viscosity, neutral, non-explosive, without solid particles or fibers, liquid, liquid transport can not pump the material with chemical resistance. |
| Boiler feed water and condensate systems; | |
| High-rise building pipeline booster; | |
| Water treatment, infiltration and filtration systems; | |
| Food and beverage industry; | |
| The pharmaceutical industry; | |
| Agriculture, nurseries, golf course irrigation; | |
| Fire boost regulator system; | |
| Catering, industrial cleaning systems; | |
| Liquid, circulation and promotion; | |
| Hot and cold water. | |
| Scope of Application | Medium temperature: Normal temperature -15 ~70 ; Hot Water -15 ~120 |
| Flow range: 0.4~50m /h3 | |
| Medium pH range: PH 3 to 11; | |
| The maximum ambient temperature: 40 ; | |
| The highest altitude: 1000m; (Higher than either altitude1000m the order put forward in time) | |
| Minimum inlet pressure: -6m | |
| Maximum working pressure: 2.5MPa. | |
| When the specific gravity and viscosity of the pumped liquid than water, the shaft power will increase, so must be used to match the motor shaft power. |
