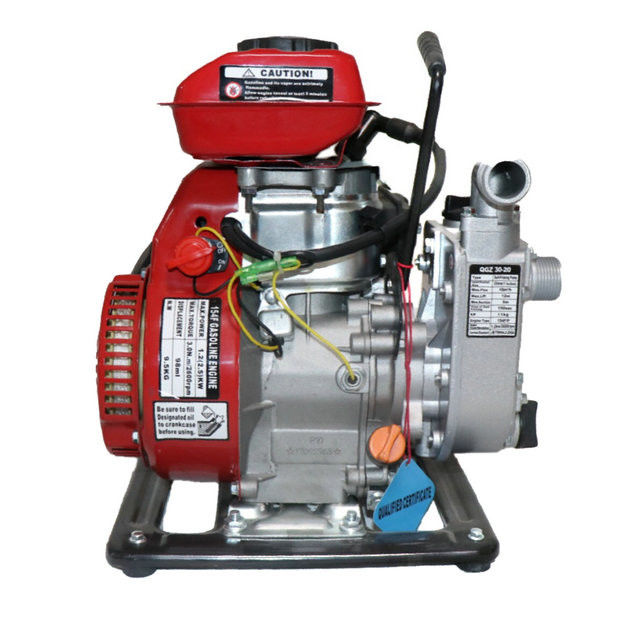

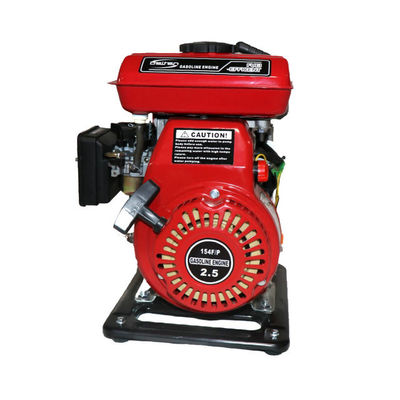

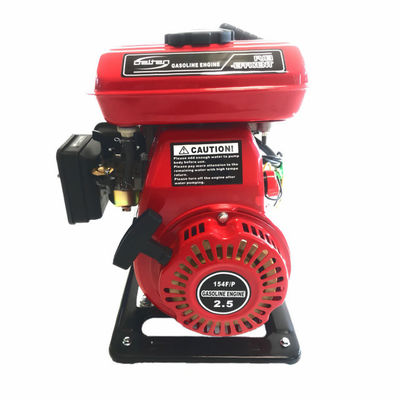

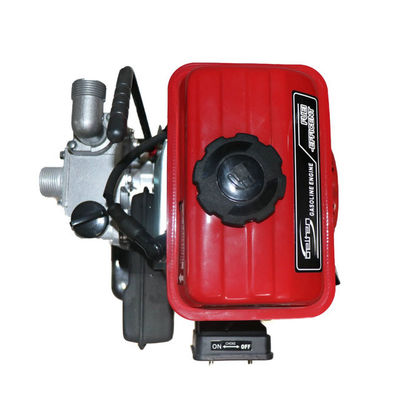

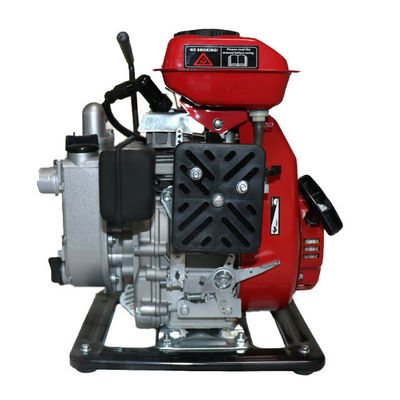

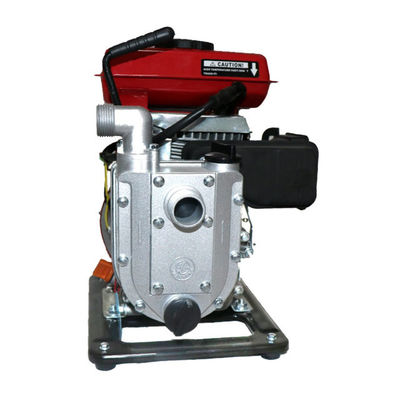

1.5 inch BT-15 Portable Electric Fire Fighting Gasoline Water Pump
| MODEL | BT-WP20 | BT-WP30 | BT-WP40 | |
| Water Pump | Inlet and outlet inside diameter(mm) | 50(2inch) | 80(3inch) | 100(4inch) |
| Displacement(m3/h) | 30 | 60 | 80 | |
| Total head(m) | 28 | 30 | 25 | |
| Suction(m) | 8 | 8 | 8 | |
| Engine | Model | GX168F | GX168F-1 | GX177F |
| Engine Type | 4-Stroke,single cylinder with air-cooled | |||
| Bore*Stroke(mm) | 68*54 | 68*54 | 77*58 | |
| Displacement(cc) | 163 | 196 | 270 | |
| Comperession ratio | 8:05:01 | 8:05:01 | 8:02:01 | |
| Max.power(hp/rpm) | 5.5/3600 | 6.5/3600 | 9/3600 | |
| Ignition System | Non-contact tranistorized ignition (TCI) | |||
| Starting System | Recoil Starting | |||
| Fuel Tank capacity(L) | 3.6 | 3.6 | 6 | |
| Package | Dimension(LXWXH)mm | 480*370*415 | 505*410*450 | 635*460*510 |
| Net Weight(kg) | 28 | 31 | 47 | |
| 20'FCL(pcs) | 320 | 300 | 180 | |
| 40'HQ(pcs) | 640 | 600 | 360 | |
PEJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.
Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.
Fire Pump System Accessories
Packaging & Shipping
