High Quality Diesel Fire Pump With High Headlift
Diesel Fire Pump EDJ electric pump + diesel With Good Quality And Competive Price
1)Usage:fire fighting/ industrial water supply
2)outflow: 30m3/h--2000m3/h,
3)head lift : 10m--250m
4)Energy saving10%
5)Certification:ISO9001
6)Spare parts supplied
For example

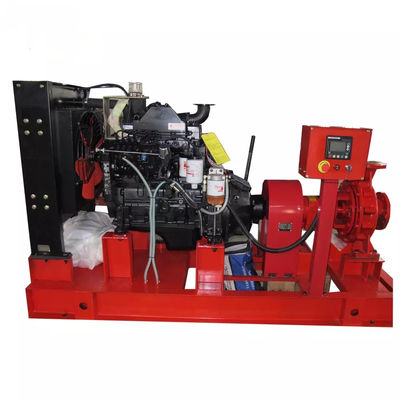

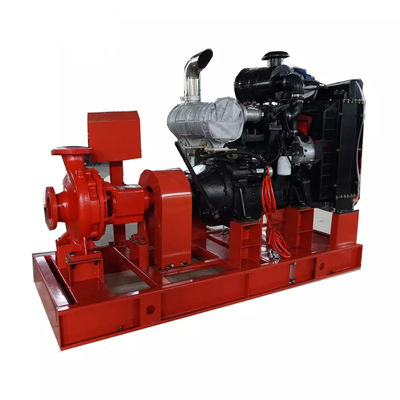

Diesel Fire Pump With Good Quality And Competive Price
| Model of Diesel pump set | EDJ 12.5/130 (Q=100m3/h H=125m) |
| Usage | farm irrigation/ water supply |
| Outflow | 100m3/h |
| Head lift | 125m |
| Treated Water | fresh water/ river water |
| Diesel Engine | |
| Model | Y4102 |
| Rated Output/Max output(KW) | 62/68.2 |
| Rated Speed (r/min) | 3000 |
| Starting Method | 24V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Intake Method | natural aspiration |
| Cylinders | 4 |
| Bore/Stroke | 102/118mm |
| Type | closed water cooling,in-line,4 stroke,humid liner,direct injection |
| Water Pump | |
| Model | IS100-65-315 |
| Type | single grade,single suction,centrifugal pump |
| Outflow/head lift | 100m3/h,head lift:125m |
| Suction lift | 6.5m |
| Shaft Power | 51.6KW |
| Inlet diameter | 100mm(4inch) |
| Outlet diameter | 65mm(2.5inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | stuffing sealing |
| Control System | |
| Display/Control System | Self starting,Display oil pressure,charging current,water temperature,oil temperature. |
| Standard Equipments | |
| Diesel engine: 1set | |
| Water pump: 1set | |
| steel mounting base with 8hours working fuel tank | |
| Control panel | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Battery:DC 12V*2 | |
| Accessary spare parts | |
| Technic file: 1set | |
| Packing | plywood case |
| Payment Terms | T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS. |
| Delivery Time | 20-30 working days after received 30%deposit |
| MOQ | 1SET |
Pictures for fire pump
EJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

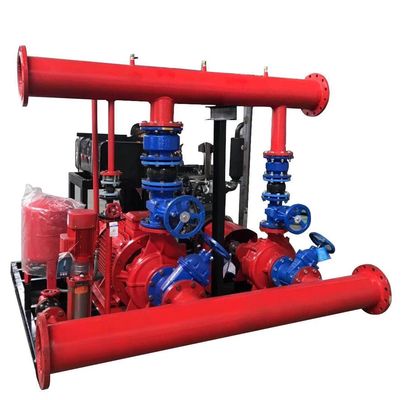

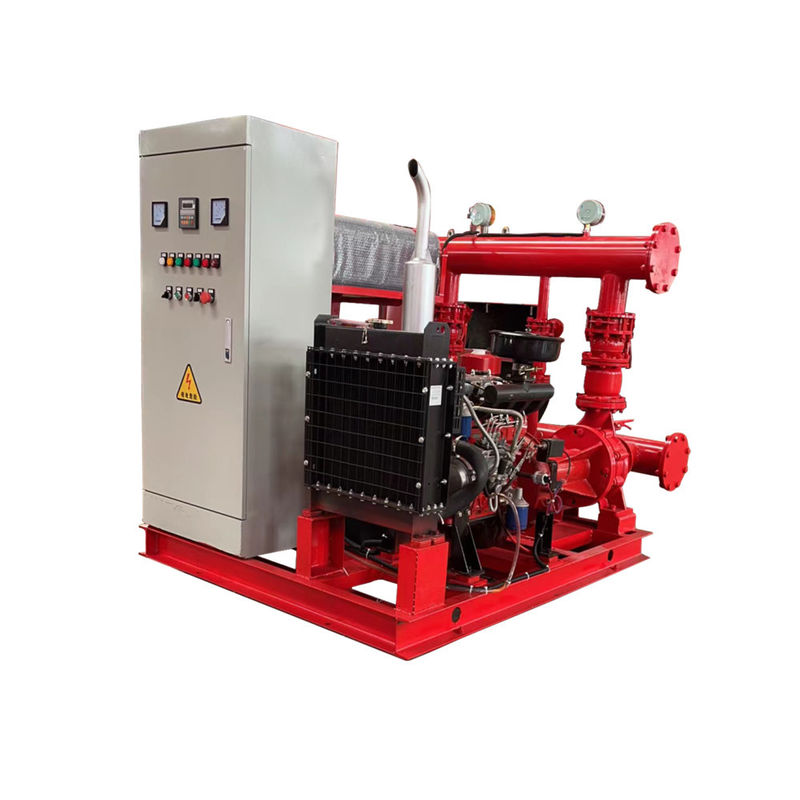

EDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.
Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.
