| 100GPM @4BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD4/5-50L(50-200) | 100 | 4 | 5.5 | cast iron |
| Diesel engine | XBC4/5-IS | 100 | 4 | 5.5 | cast iron |
| Jockey | CDL2-70 | 10 | 5 | 0.75 | SS304 |
| 100GPM @6BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD6/5-65L(65-250B) | 100 | 6 | 7.5 | cast iron |
| Diesel engine | XBC6/5-IS | 100 | 6 | 7.5 | cast iron |
| Jockey | CDL2-100 | 10 | 7 | 1.1 | SS304 |
| 200GPM @6BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD6/10-65L(65-250) | 200 | 6 | 15 | cast iron |
| Diesel engine | XBC4/5-IS | 200 | 6 | 22 | cast iron |
| Jockey | CDL4-90 | 20 | 7 | 2.2 | SS304 |
| 500GPM @5BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD5/30-100L(100-200) | 500 | 5 | 22 | cast iron |
| Diesel engine | XBC5/30-IS | 500 | 5 | 30 | cast iron |
| Jockey | CDL12-60 | 50 | 6 | 4 | SS304 |
| 500GPM @8BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD8/30-100L(100-250) | 500 | 8 | 37 | cast iron |
| Diesel engine | XBC8/30-D | 500 | 8 | 45 | cast iron |
| Jockey | CDL12-90 | 50 | 9 | 5.5 | SS304 |
| 500GPM @10BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD10/30-100L(100-315A) | 500 | 10 | 55 | cast iron |
| Diesel engine | XBC10/30-D | 500 | 10 | 55 | cast iron |
| Jockey | CDL12-110 | 50 | 11 | 7.5 | SS304 |
| 750GPM @9BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD9/50-125L(125-250) | 750 | 9 | 55 | cast iron |
| Diesel engine | XBC9/50-D | 750 | 9 | 90 | cast iron |
| Jockey | CDL16-90 | 70 | 10 | 11 | SS304 |
| 750GPM @10BAR | |||||
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD10/50-150L(150-315A) | 750 | 10 | 90 | cast iron |
| Diesel engine | XBC10/50-D | 750 | 10 | 90 | cast iron |
| Jockey | CDL16-100 | 70 | 11 | 11 | SS304 |

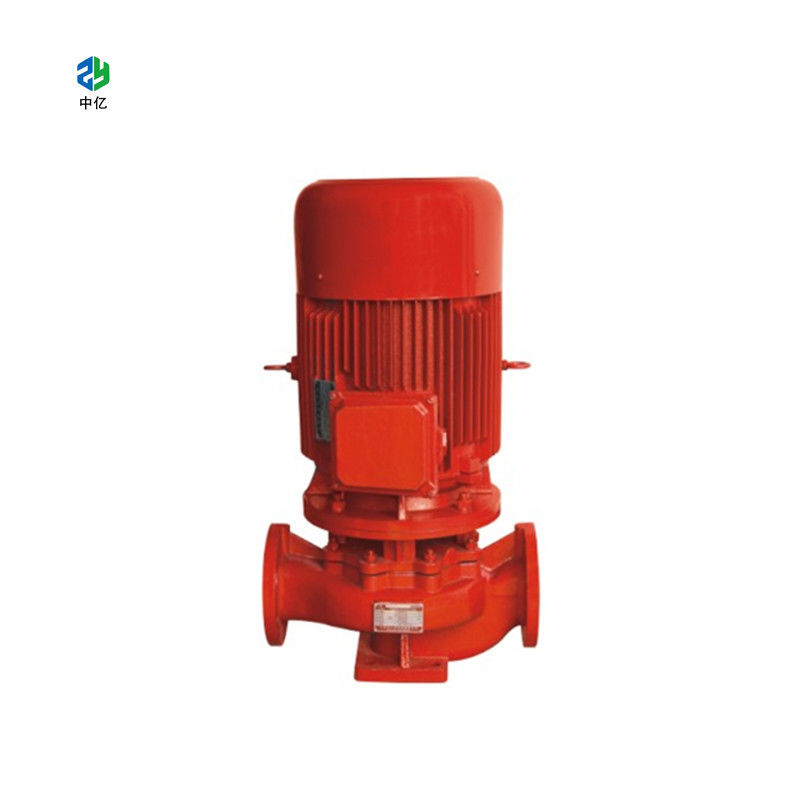

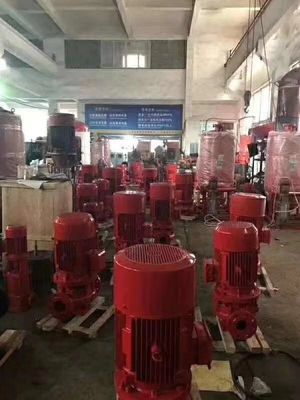

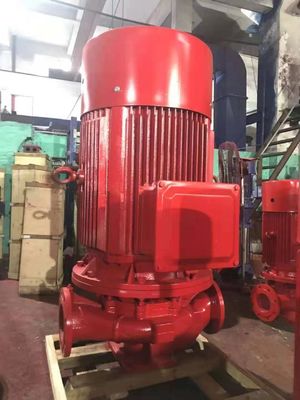

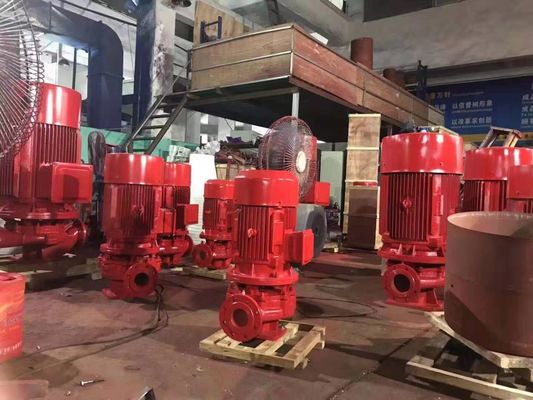

XBD Series Electric Vertical Emergency Fire Fighting Water Pump
XBD series Fire Water Pump is mainly apply to fire protection system pressurized water pipes, could also apply to industrial and Urban water supply and drainage, water pressure high-rise building, long-distance water, heating, bathrooms, boilers and well-being of the water cycle, pressurized water and air-conditioning cooling systems and other equipment supporting occasions.
Flow:5 -100L/S
Pressure:0.10-1.25Mpa
Power:1.1-250KW
Speed:980-2900r/min
Caliber:φ50-φ300
Temperature Range:≤80℃
PEJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.
Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.
