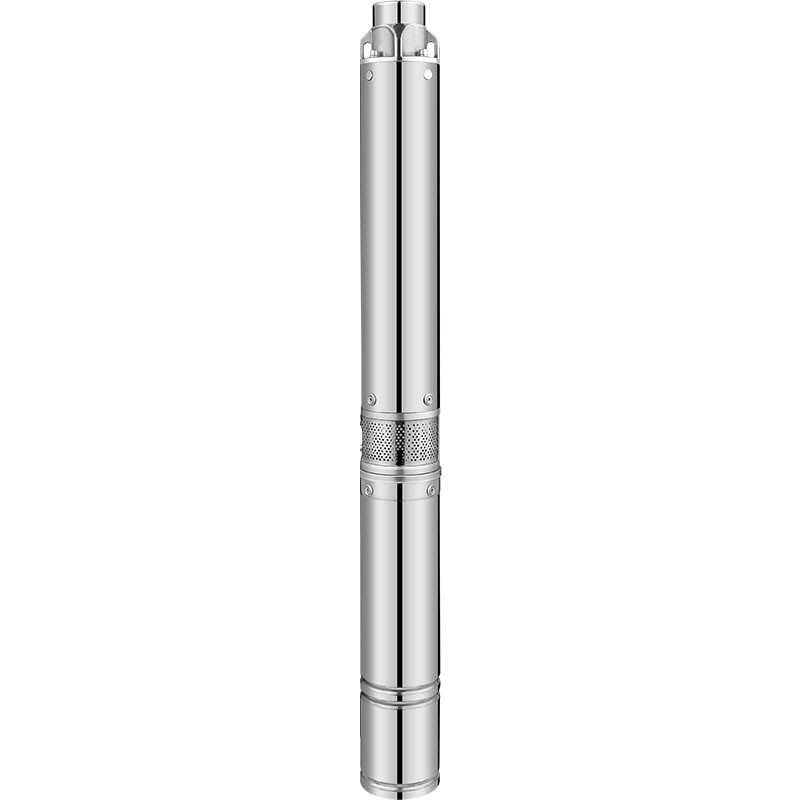

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump

1set
MOQ
$50-$1000
Price
High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: QJ Series
Structure: Multistage Pump
Usage: Water
Application: Domestic/Commercial
Power: Electric
Fuel: Electric
Pressure: Low Pressure
Standard Or Nonstandard: Standard
Theory: Centrifugal Pump
Brand: ABC
Flow Rate: Up To 200 LPM
Head: Up To 300m
Material: Stainless Steel
Motor Horsepower: 2-3 HP
Motor Type: Oil Filled
Phase: Single/Three
Power Rating: 2-3 HP
Power Source: Electricity
Product Name: Borewell Submersible Pump
Pump Type: Submersible
Speed: 2800-3450 RPM
Voltage: 220-240V
Warranty: 1 Year
Highlight:

4 Inch Borewell Submersible Pump

,

2 Inch Borewell Submersible Pump

,

Shaft Driven Borehole Water Pump

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: ZY
Certification: ISO9001
Model Number: QJ series
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 7-30WD
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000set/month
Product Description

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump​





APPLICATION

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.



OPERATING LIMITS

1. Maximum fluid temperature up to +40°C

2. Maximum sand content: 0.25%

3. Maximum immersion: 80m

4. Minimum well diameter: 4”



FEATURES

1. CE, GS certificate

2. 100% copper wire, automatic wiring

3. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.

4. CNC precision automatic lathe for smoother shaft.

5. Strict tests include water test, outgas test and performance test, ect.

6. Anti-rust treatment castings and electrophoresis.

7. 23-year experience, 1 year warranty.

TECHNICAL DATA

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump 0

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump 1

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump 2

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump 3





Packing:

High Precision Cold-Rolled Silicon Steel Sheet Submersible Well Borehole Water Pump 4
