Single Stage Single Suction Centrifugal Pump

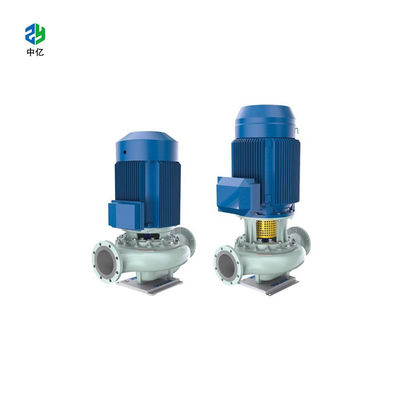

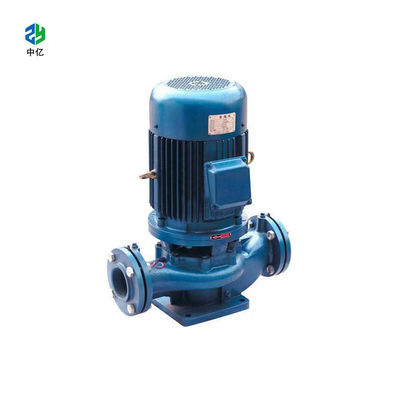

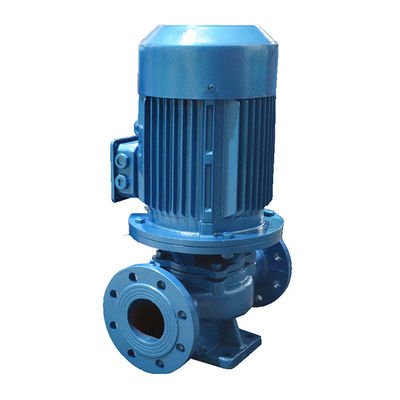

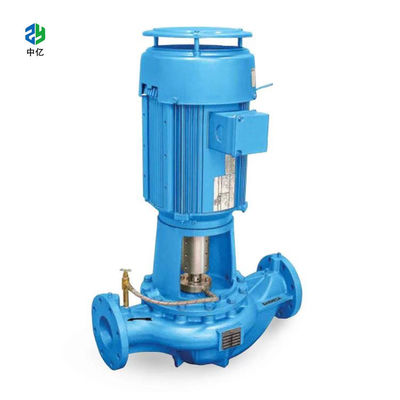

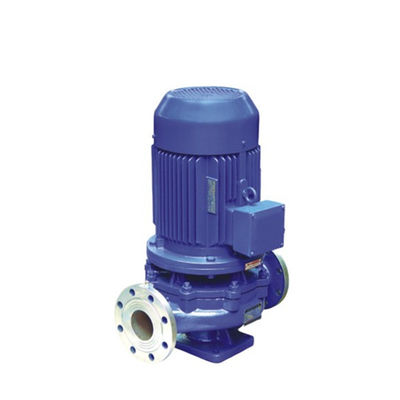

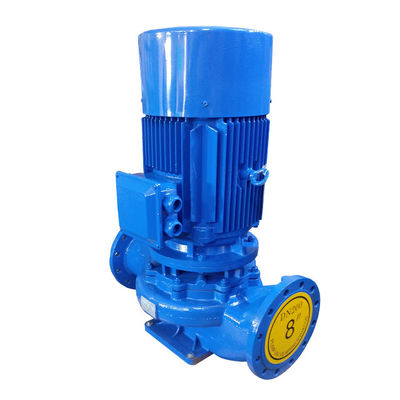

ISG Single Stage Single Suction Centrifugal Pump Pipeline Centrifugal Pump

Brand Name:	ZY
Model Number:	ISG/ISW
MOQ:	1pcs
Price:	$200-1000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Pressure:

≤1.6MPa

Usage:

Water

Power:

0.55~250KW

Material:

Cast Iron, Stainless Steel

Application:

Water Supply, Industrial Irrigation

Caliber:

DN15~DN200mm

Efficiency:

≥70%

Flow Rate:

1~600m3/h

Head:

5~125m

Insulation Class:

NPSH:

3~9m

Name:

Single Stage Single Suction Centrifugal Pump

Protection Class:

IP54/IP55

Speed:

1450~2900r/min

Temperature:

≤120℃

Voltage:

220V/380V/440V/660V/1140V

Packaging Details:

wooden

Supply Ability:

500pcs/month

Highlight:

SG Single Stage Single Suction Centrifugal Pump

SG Pipeline Centrifugal Pump

Single Stage Single Suction Centrifugal Pump Pipeline

Product Description

Introduction:

ISG Single Stage Stainless Steel Vertical Turbine Water Pump also been called pipeline pump, centrifugal pump, pipeline centrifugal pump, single stage centrifugal pump, vertical pump, booster pump, hot water pump, circulating pump, pump, etc., is an expert in this unit of science and technology personnel joint domestic pump chooses excellent hydraulic model, adopt IS type of centrifugal pump performance parameters, on the basis of the general vertical pump to design ingenious combination becomes.At the same time according to different use, such as temperature, medium on the basis of type ISG sent for pump, hot water pump, temperature and corrosive chemical pump, oil pump.ISG pipeline pump has the advantages of high efficiency and energy saving, low noise, reliable in performance.

Applicant:

ISG Single Stage Stainless Steel Vertical Turbine Water Pump is used for delivering clean water and other

liquids which have similar physical and chemical characteristics with clean water.

It is applicable to industrial and municipal water supply and drainage, pressurized water supply for high-rise buildings, garden spay-irrigation, fire fighting pressurization, long distance delivery, HAV and refrigeration circulation, bathroom pressurization and equipment matching; and the operating temperture is less than 90℃.

Model Description:

MODEL-ISG80-160(I)(A)(B)(C)

ISG Single Stage Stainless Steel Vertical Turbine Water Pump

80 - Nominal diameter of pump inlet and outlet (mm)

160 - Nominal diameter of impeller

(I) - Classification of flow

(A)- The first cutting of impeller

(B) -The second cutting of impeller

(C)- The third cutting of impeller

Specification:

No.	Model	Flow(m3/h)	Head(m)	Power(kw)	Speed(rpm)
No.	Model	Flow(m3/h)	Head(m)	Power(kw)	Speed(rpm)
75	50-250(I)B	21.6	60	11	2900
76	50-315(I)	25	125	30	2900
77	50-315(I)A	23.7	113	22	2900
78	50-315(I)B	22.5	101	18.5	2900
79	50-315(I)C	20.6	85	15	2900
80	65-100	25	12.5	1.5	2900
81	65-100A	22.3	10	1.1	2900
82	65-125	25	20	3	2900
83	65-125A	22.3	16	2.2	2900
84	65-160	25	32	4	2900
85	65-160A	23.4	28	4	2900
86	65-160B	21.6	24	3	2900
87	65-200	25	50	7.5	2900
88	65-200A	23.5	44	7.5	2900
89	65-200B	21.8	38	5.5	2900
90	65-250	25	80	15	2900
91	65-250A	23.4	70	11	2900
92	65-250B	21.6	60	11	2900
93	65-315	25	125	30	2900
94	65-315A	23.7	113	22	2900
95	65-315B	22.5	101	18.5	2900
96	65-315C	20.6	85	15	2900
97	65-100(I)	50	12.5	3	2900
98	65-100(I)A	44.7	10	2.2	2900
99	65-125(I)	50	20	5.5	2900
100	65-125(I)A	44.7	16	4	2900
101	65-160(I)	50	32	7.5	2900
102	65-160(I)A	46.7	28	7.5	2900
103	65-160(I)B	43.3	24	5.5	2900
104	65-200(I)	50	50	15	2900
105	65-200(I)A	47	44	11	2900
106	65-200(I)B	43.5	38	7.5	2900
107	65-250(I)	50	80	22	2900
108	65-250(I)A	46.7	70	18.5	2900
109	65-250(I)B	43.3	60	15	2900
110	65-315(I)	50	125	37	2900
111	65-315(I)A	46.5	110	30	2900

ISG Single Stage Single Suction Centrifugal Pump Pipeline Centrifugal Pump 1
