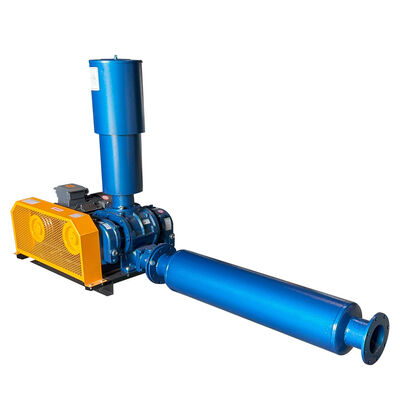

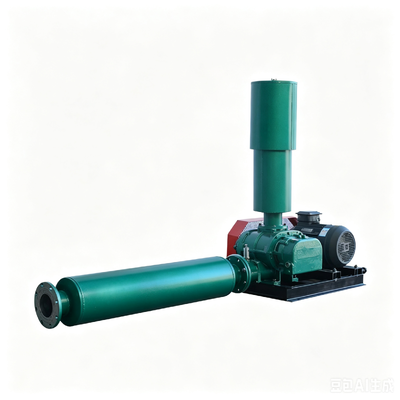

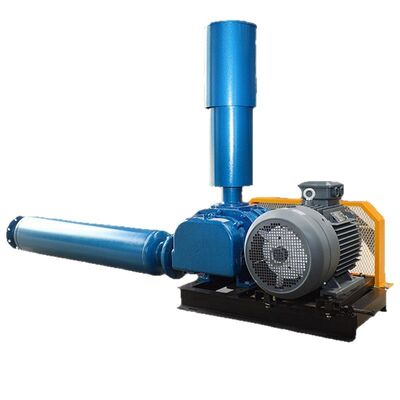

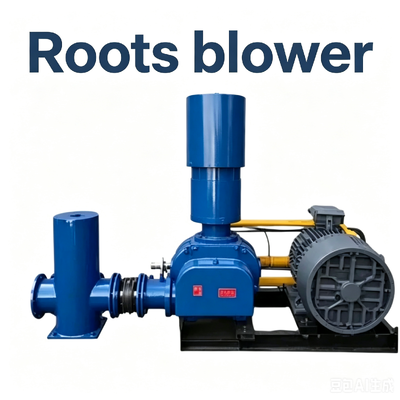

IP68 Roots Rotary Lobe Blower Submersible Mixer Pump Industrial Electric Power Source For Heavy Duty Mixing

Brand Name:	OEM
Model Number:	RAR
MOQ:	2
Price:	1000-5000USD
Payment Terms:	TT
Supply Ability:	100 PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG PROVINCE .QUZHOU

Certification:

ISO9001

Application:

Industrial

Insulation Class:

Warranty:

One Year

Material:

Cast Iron/ SS

Power Rating:

0.37-22kW

Power Source:

Electric

Protection Grade:

IP68

Product Name:

Roots Blower

Operating Principle:

Two-lobe Rotors Rotating In Opposite Directions

Pressure Range:

Up To 1.2 Bar (gauge Pressure)

Bore:

50A-300A

Air Capacity:

0.45--2.31m3/min

Rated Power:

110kw-1400kw

Pressure:

1Pa-1.013 25×100000Pa

Rated Voltage:

380v 50 Hz, 440V 60HZ

Production Time:

Shipment Within 7 Days After Payment

Noise:

Under 90 Db

Flow Rate:

Varies By Model, Typically From 1 To 1000 M³/min

Energy Efficiency:

High Efficiency

Temperature Range:

-20°C To 150°C

Delivery Methods:

By Air, Sea, Land, Express

Packaging Details:

PLYWOOD FOR SUBMERSIBLE SLURRY PUMP

Supply Ability:

100 PCS PER MONTH

Highlight:

IP68 Submersible Mixer Roots Blower

Heavy Duty Electric Lobe Pump

Waterproof Industrial Rotary Blower

Product Description

Product Description:

Roots Blower Overview

The Roots blower is a typical positive displacement rotary blower. It delivers gas forcibly through two synchronously counter-rotating figure-8 impellers. It features constant flow, simple structure and oil-free gas supply, widely adopted as low-pressure air source equipment in various industries.

Working Principle

Two sets of impellers inside the casing rotate synchronously in opposite directions, causing periodic volume change of the working chamber. Air is sucked in when the chamber expands and forced out when the chamber shrinks.

There is no internal gas compression inside the unit. Gas is only displaced by impellers, and pressure rise is achieved by pipeline backpressure. At fixed rotating speed, the output flow barely fluctuates with pressure variation, realizing forced gas delivery.

Main Structure

Key components: precision impellers (2-lobe and 3-lobe types), synchronous gears, casing, bearings, shaft seals and lubrication parts.

2-lobe Roots blower: low cost but severe airflow pulsation and high noise;
3-lobe Roots blower: much lower airflow pulsation, vibration and noise, the mainstream model in current market.

Advantages & Disadvantages

Advantages

Constant air flow: Under fixed rotation speed, air volume remains stable regardless of pressure changes.
Easy maintenance: Fewer components, low vibration and long service life with low operation cost.
Clean gas supply: No lubricating oil mixed with airflow to achieve oil-free delivery.
Cost-effective: Far lower purchase price than magnetic levitation blowers, ideal for small and medium-sized factories.
Wide medium adaptability: Able to convey air, inert gas and other media.

Disadvantages

Relatively high operating noise, which requires supporting silencers and sound insulation covers.
Sharp efficiency drop under high pressure, mainly suitable for low and medium pressure conditions.
Obvious heat generation during long continuous operation, requiring effective heat dissipation.

Application Fields

Environmental water treatment: Aeration and oxygen supply for sewage treatment.
Pneumatic conveying: Transportation of powder materials such as cement, flour and coal powder.
Manufacturing industry: drying, food cooling, mine ventilation, coal powder supply for power plants.
Other applications: Oxygenation for aquaculture, waste gas treatment, vacuum packaging, etc.

Selection & Operation Suggestions

Determine required air volume, working pressure and medium temperature & humidity during model selection.

Keep intake air clean with filters in daily operation, inspect lubrication system regularly and monitor operating temperature and pressure. Choose 3-lobe impellers with noise reduction accessories for noise-sensitive working environments.
