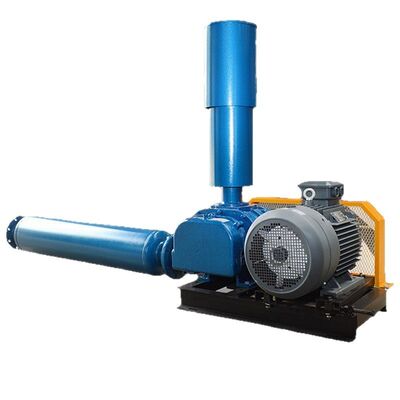

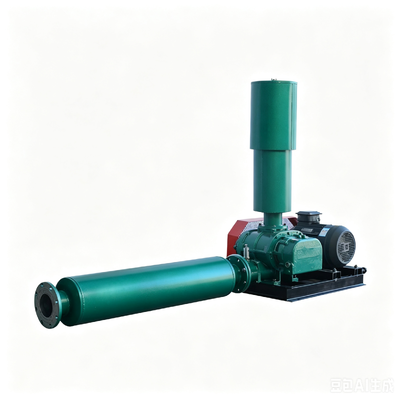

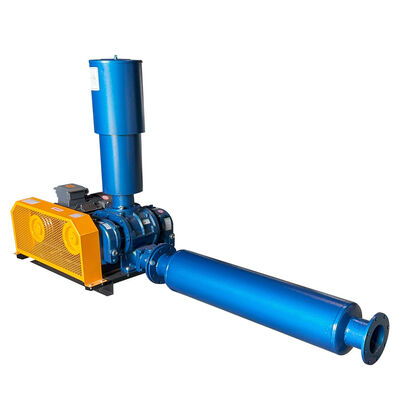

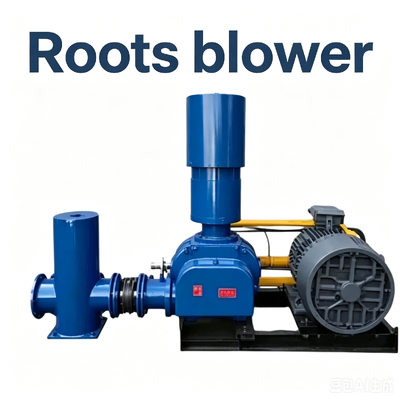

Heavy Duty Roots Positive Displacement Blower Robust Construction Long Service Life For Wastewater Treatment And Chemical Processing

Brand Name:	OEM
Model Number:	RAR
MOQ:	2
Price:	1000-5000USD
Payment Terms:	TT
Supply Ability:	100 PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG PROVINCE .QUZHOU

Certification:

ISO9001

Power Source:

Electric

Protection Grade:

IP68

Product Name:

Roots Blower

Insulation Class:

Material:

Cast Iron/ SS

Application:

Industrial

Warranty:

1 Year

Power Rating:

0.37-22kW

Capacity:

1.63-274cubic Meters Per Minite

Outletdiameter:

Varies (typically 50 Mm To 600 Mm)

Rated Power:

3kw-15kw

Working Hours:

Sustain

Technology:

Roots

Usage:

Roots Blower

Flow Range:

0.45-452.4m³/min

Flow:

4.5-70m³/min

Coolingmethod:

Air Cooled / Water Cooled

Numberoflobes:

Material Quality:

HT250

Speed:

700rpm-2300rpm

Pressure:

9.8kpa-88.2kpa

Package:

Wooden Case

Calibre:

50-200mm

Packaging Details:

PLYWOOD FOR SUBMERSIBLE SLURRY PUMP

Supply Ability:

100 PCS PER MONTH

Highlight:

Heavy Duty Long Life Roots Blower

Chemical Wastewater Processing Blower

Robust Positive Displacement Air Blower

Product Description

Product Description:

The Roots blower is a typical positive displacement rotary blower. It delivers gas forcibly through two synchronously counter-rotating figure-8 impellers. It features constant flow, simple structure and oil-free gas supply, widely adopted as low-pressure air source equipment in various industries.

Heavy Duty Roots Positive Displacement Blower Robust Construction Long Service Life For Wastewater Treatment And Chemical Processing

Roots Blower Advantages and Disadvantages

Advantages

Stable air output

As a positive displacement equipment, its flow rate is barely affected by pressure changes. The air volume stays constant when the rotating speed remains unchanged, delivering steady gas supply within the rated pressure range.
Simple structure & low maintenance cost

The overall mechanical structure is compact with few vulnerable parts. The unit runs with slight vibration and boasts a long service life, bringing convenient daily maintenance.
Oil-free gas conveying

There is no oil mixing in the delivered medium, which meets the high cleanliness requirements of aquaculture, food processing and sewage aeration.
High cost performance

Its purchase cost is only about 1/5 of magnetic levitation blowers, which is more economical for small and medium-sized factories with medium and low pressure working conditions.
Wide adaptability

It can transport air, inert gas and other media, and is applicable to sewage aeration, pneumatic conveying, aquaculture oxygenation and many other industries.

Disadvantages

Large airflow pulsation and high noise

Especially for two-lobe Roots blowers, periodic gas extrusion will produce obvious pulsation noise. Silencers, sound insulation covers and shock absorbers usually need to be installed additionally. Three-lobe models can reduce noise but cannot eliminate it completely.
Poor efficiency under high pressure

The blower has no internal compression process, and gas is pressurized entirely by pipeline backpressure. When the working pressure rises to a high level, power consumption increases sharply and overall operating efficiency declines obviously.
Limited pressure range

It is mostly suitable for low and medium pressure working conditions. If used under ultra-high pressure for a long time, the temperature rise of the unit will be serious, and the failure risk of gears and seals will increase.
Large heat generation during long-time operation

Continuous forced gas pushing causes temperature rise of the casing, so cooling and heat dissipation measures need to be matched for long-term continuous operation.

Heavy Duty Roots Positive Displacement Blower Robust Construction Long Service Life For Wastewater Treatment And Chemical Processing
