Single Stage Single Suction Centrifugal Pump
Created with Pixso.

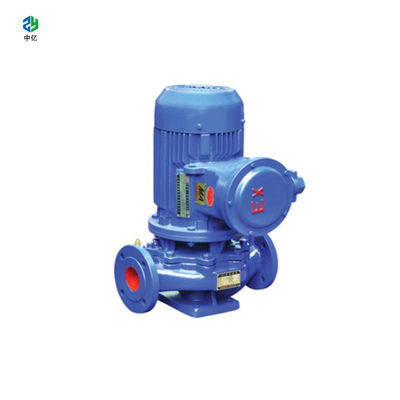

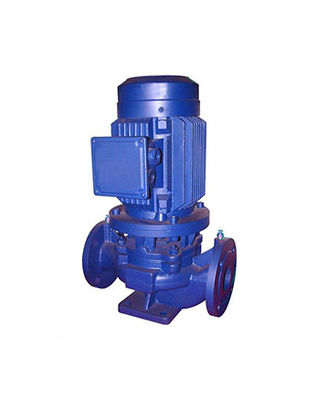

ISG Interchangeable Parts singe stage Centrifugal Water Pump

ISG Interchangeable Parts singe stage Centrifugal Water Pump

Brand Name: ZY
Model Number: ISG
MOQ: 2
Price: 200USD-1000USD
Payment Terms: , T/T, Western Union, MoneyGram
Supply Ability: 10pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Model Number:
ISG
Theory:
Centrifugal Pump
Pressure:
≤1.6 MPa
Material:
Cast Iron, Stainless Steel
Medium:
Clean Water Or Similar To Clean Water Liquid With No Solid
Structure:
Single-stage Pump
Application:
Water Supply And Drainage, Fire Protection, HVAC, Etc.
Efficiency:
≥50%
Flow Rate:
2.2-400 M3/h
Head:
5-125 M
Inlet Diameter:
DN32-DN200 Mm
NPSHr:
2-7 M
Name:
Single Stage Single Suction Centrifugal Pump
Outlet Diameter:
DN25-DN150 Mm
Power:
0.75-160 KW
Speed:
1450-2900 R/min
Temperature:
≤120℃
Warranty:
12 Months
Packaging Details:
plywood
Supply Ability:
10pcs/week
Highlight:

Vertical Single Stage Single Suction Centrifugal Pump

,

ISG Single Stage Single Suction Centrifugal Pump

,

ISG vertical centrifugal pump

Product Description
ISG industry vertical pipeline single stage  centrifugal water pump

Product Description



Name:ISG industry vertical centrifugal water high pump

Main datas:(2900RPM)

Capacity( flow rate) : 6.5 ~ 240m3/h

Head :16~125 m

Main datas:(1450RPM)

Capacity( flow rate) : 3.25 ~ 400m3/h

Head :4~125 m



Max speed :3500rpm

Max working temperature: 80 °C

Max pressure :1.6 Mpa

Medium : clean water or similar to clean water liquid with no solid





No. Model Power
(KW)
Flow
(m3/h)
head
(m)
Speed
(r/min)
1 25-125 0.75 4 20 2900
2 25-125A 0.75 3.6 16 2900
3 25-160 1.5 4 32 2900
4 25-160A 1.1 3.7 28 2900
5 32-125 0.75 4.5 20 2900
6 32-125A 0.75 4 16 2900
7 32-160 1.5 4.5 32 2900
8 32-160A 1.1 4 25 2900
9 32-200 3 4.5 50 2900
10 32-200A 3 4 44 2900
11 40-100 0.75 6.3 12.5 2900
12 40-125 1.1 6.3 20 2900
13 40-125A 0.75 5.6 16 2900
14 40-160 2.2 6.3 32 2900
15 40-160A 1.5 5.9 28 2900
16 40-160B 1.1 5.5 24 2900
17 40-200 4 6.3 50 2900
18 40-200A 3 5.9 44 2900
19 40-200B 2.2 5.5 38 2900
20 40-250 7.5 6.3 80 2900
21 40-250A 5.5 5.9 70 2900
22 40-250B 74 5.5 60 2900
23 40-100(I) 1.1 12.5 12.5 2900
24 40-100(I)A 0.75 11 10 2900
25 40-125(I) 1.5 12.5 20 2900
26 40-125(I)A 1.1 11 16 2900
27 40-160(I) 3 12.5 32 2900
28 40-160(I)A 2.2 11.7 28 2900
29 40-160(I)B 1.5 10.5 22 2900
30 40-200(I) 5.5 12.5 50 2900
31 40-200(I)A 4 11.7 44 2900
32 40-200(I)B 3 10.5 36 2900
33 40-250(I) 11 12.5 80 2900
34 40-250(I)A 7.5 11.7 70 2900
35 40-250(I)B 7.5 10.8 60 2900
36 50-100 1.1 12.5 12.5 2900
37 50-100A 0.75 11 10 2900
38 50-125 1.5 12.5 20 2900
Application



Usage
1. Cleanout system.

2. Every series of food machining and medicine produce

3. Environment protect system.

4. Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.

5. Electroplate and Dyeing system.

6. Industrial and chemical sump treatment

7. Explosion proof motor for oil, alcohol and other explosive liquid





summary

Pumps type IS is a kind of axial suction centrifugal pump with single stage and suction

It is used to pump clear water and physical or chemical liquid similar to clear water below 85oC, and is widely applied to industries, to city water supply and drain, and also to agricultural and orchard irrigation.

IS pump is of simple structure, reliable performance, small body, light weight,high efficiency, low noise, tiny vibra, little NPSH and easy in maintenance.

Pump type IS have 29 main type and 151 sizes, but only 4 shafts and 4 mounting frames are utilized on it. So the interchangeability or parts is more than 91%.





Type description:

IS50-32-125A

IS-single stage single suction centrifugal clean water pump

50-the inlet diameter(mm)

32-the outlet diameter(mm)

125-the nominal name of the impeller(mm)

A-A,B,C refer to the first, the second, the third trim after the impeller respectively.

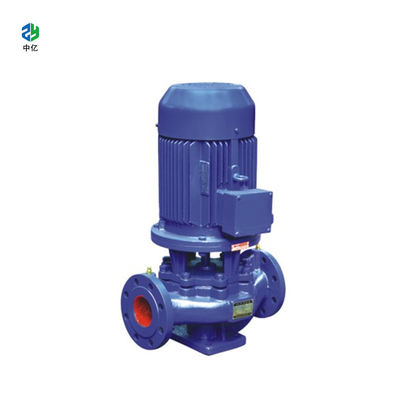

ISG Interchangeable Parts singe stage  Centrifugal Water Pump 0

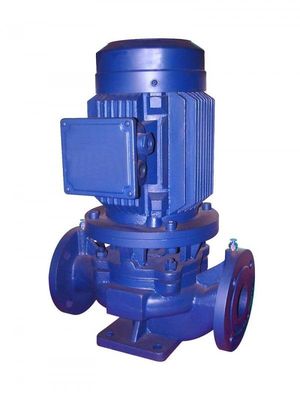

ISG Interchangeable Parts singe stage  Centrifugal Water Pump 1
