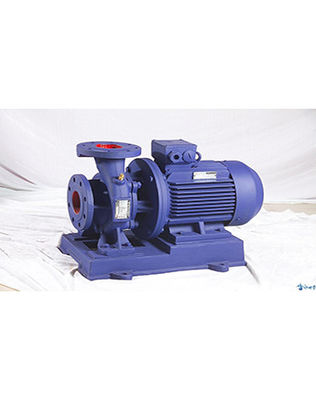

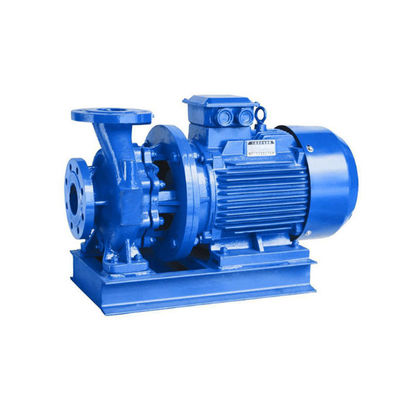

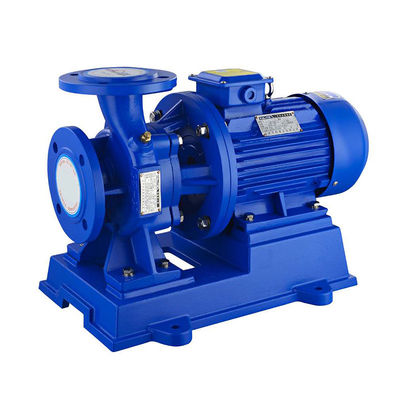

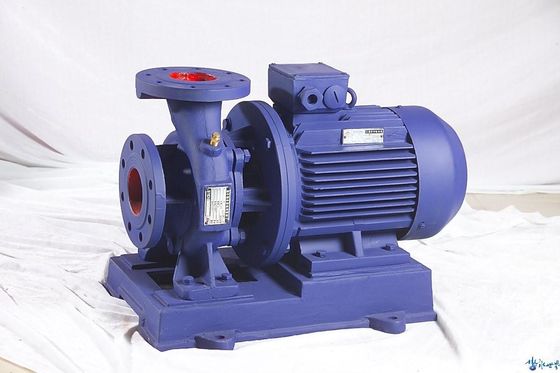

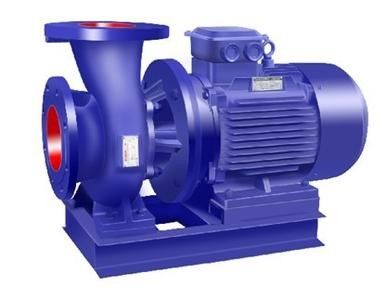

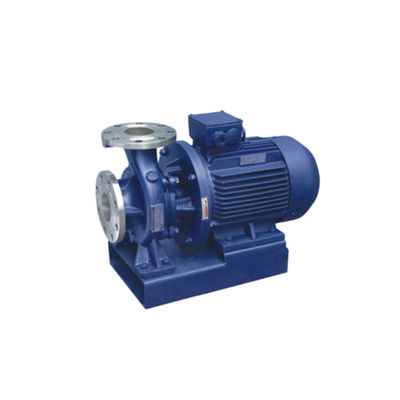

ISW horizontal end suction pump single stage pipeline monoblock motor pump

2
MOQ
200USD-1000USD
Price
ISW horizontal end suction pump single stage pipeline monoblock motor pump
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Fuel: Electric
Pressure: Normal
Application: Water
Casing: Cast Iron, Stainless Steel
Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: ISW
Payment & Shipping Terms
Packaging Details: plywood
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10pcs/week
Product Description

ISW horizontal end suction pump single stage pipeline monoblock motor pump



Introduction:

1. ISW horizontal end suction pump single stage pipeline monoblock motor pump is a high-effective energy-saving product designed by Ronda.

2. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved.

3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump, extending the duration and ensuring the operation place clean and tidy.

4. Widely used in industrial and cities’ water supply and drainage, high buildings’ booster water supply, gardens irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in competitions of equipments.

5. The pump, according to the operation condition of the worksite, may be vertically, horizontally etc. and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.

6. The flow range is 1.1-2400m3/h and the stroke range 8-160m and there are basic type, by-pass type, A B C cutting type etc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot water pump, IHG/IHGB/ISWH chemical pump and YG/YGB/ISWB oil pump etc. Series products. of the same type and same property data have been designed and made.



Product details:

Working Principle: Centrifugal
Main applications: Water (oil, chemical, contact us)
Driver: Electric motor
Power Specs: 220V/240V380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature: 100℃ (212°F)
Type of connection: Flange
Casing: Cast iron, Stainless steel
Impeller: Cast iron, Stainless steel, Bronze
Shaft seal type: Mechanical seal
Maximum drive rating: 250KW(340HP)
Maximum caliber: 500mm(20inch)
Maximum discharge-side pressure: 1.6MPa(16bar)
Maximum head: 160m(524.8ft)
Flow rate range: 1.1-2400m3/h(4.8-10560US.GPM)
Pump type: Water, Hot water type, oil type, chemical type



Performance data:

Model Capacity Head Power Speed Eff. (NPSH)r Weight
(m3/h) (L/s) (m) (KW) (r/min) (%) (m) (kg)
15-80 1.1 0.3 8.5 0.18 2800 32.1 2.3 20
1.5 0.42 8
2 0.56 7
20-110 1.8 0.5 16 0.37 2800 32.4 2.3 25
2.5 0.69 15
3.3 0.91 13.5
20-125 1.8 0.5 21 0.75 2800 28.1 2.3 35
2.5 0.69 20
3.3 0.91 18.6
20-160 1.8 0.5 33 1.5 2950 18.8 2.3 38
2.5 0.69 32
3.3 0.91 30
25-110 2.8 0.78 16 0.55 2950 41.2 2.3 31
4 1.11 15
5.2 1.44 13.5
25-125 2.8 0.78 20.5 0.75 2950 37.5 2.3 35
4 1.11 20
5.2 1.44 18
25-125A 2.5 0.39 17 0.75 2950 36.6 2.3 35
3.6 1 16
4.6 1.28 14.5
25-160 2.8 0.78 33 1.5 2950 29.9 2.3 44
4 1.11 32
5.2 1.44 30
25-160A 2.6 0.72 29 1.1 2950 29 2.3 40
3.7 1.03 28
4.9 1.36 26
32-100 3.5 0.97 14.5 0.55 2950 45.9 2.3 35
4.5 1.24 12.5
5.3 1.47 11
32-125 3.5 0.97 22 1.1 2950 42.2 2.3 38
5 1.39 20
6.5 1.8 18
32-125A 3.1 0.86 20 0.75 2950 41.2 2.3 37
4.5 1.25 16
5.8 1.61 10
32-160 3.5 0.97 34 1.5 2950 32.8 2.3 49
4.5 1.25 32
6 1.67 26
32-160A 3.5 0.97 26.5 1.1 2950 31.8 2.3 43
4.5 1.25 25
6 1.67 19
32-200 3.5 0.97 53 3 2950 23.8 2.3 68
4.5 1.25 50
5.5 1.53 45
32-200A 3 1.08 43 2.2 2950 22.9 2.3 58
4 1.11 40
5 1.17 37
… …
400-300 820 228 23 90 1480 78.2 6 1450
1080 300 20
1300 361 16
400-315 820 228 36.5 132 1480 81.1 6 1740
1080 300 32
1300 361 27
400-450 1500 416.7 23 160 980 80.6 6.5 2420
2000 555.6 20
2400 666.7 15
400-450A 1400 388.9 20 132 980 79.3 6.5 1940
1860 516.7 17
2250 625 14
400-500 1500 416.7 34 250 980 82.8 6.5 2980
2000 555.6 32
2400 666.7 27
400-500A 1400 388.9 30 200 980 81.9 6.5 2840
1860 516.7 28
2240 625 24
400-500B 1300 361.1 26 160 980 80.9 6.5 2710
1750 486.4 24
2100 583.3 21
500-300 1000 277.8 23 110 1480 81.7 6 1800
1200 333 20
1450 403 16
500-315 1000 277.8 34.5 160 1480 80.9 6 2070
1200 333 32
1450 403 27

Parameter table above is only a part of whole. For more, please contact us directly.
