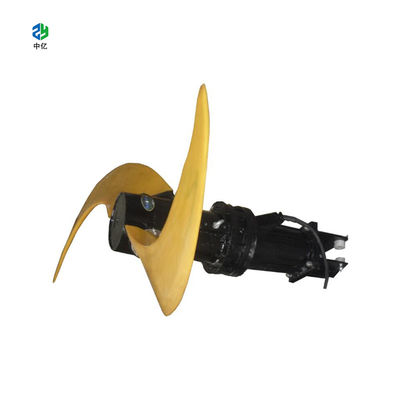

QDT4/4 Low speed Submersible Mixer with banana impeller used for water treatment system
Low Speed Mixer
Low speed submersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements.
Low Speed Mixer is mainly used in various water treatment processes and industrial processes to maintain solid and liquid two-phase or solid, liquid and gas three-phase medium uniformly mixed reaction place. It is one of the key equipment in the water treatment process, which consists of submersible motor, impeller and mounting system, etc.
The low-speed thruster is composed of a submersible motor, a reduction gear, an impeller and an installation system. It is characterized by small supporting power (1.5~7.5Kw), low speed (36~135r/min), large blade diameter (1000~2500mm), low speed rotation, large volume flow field, and wide service range. Sweep-back banana-shaped blade design with self-cleaning function. It is made of polyurethane or aluminum alloy by precision casting. It has the advantages of light weight, high strength and corrosion resistance. Its excellent friction performance can ensure low-speed movement. The lower liquid produces a good damping effect, thereby creating a soft water flow. In addition to the functions of pushing and creating water flow, this series of products also have a stirring function.
